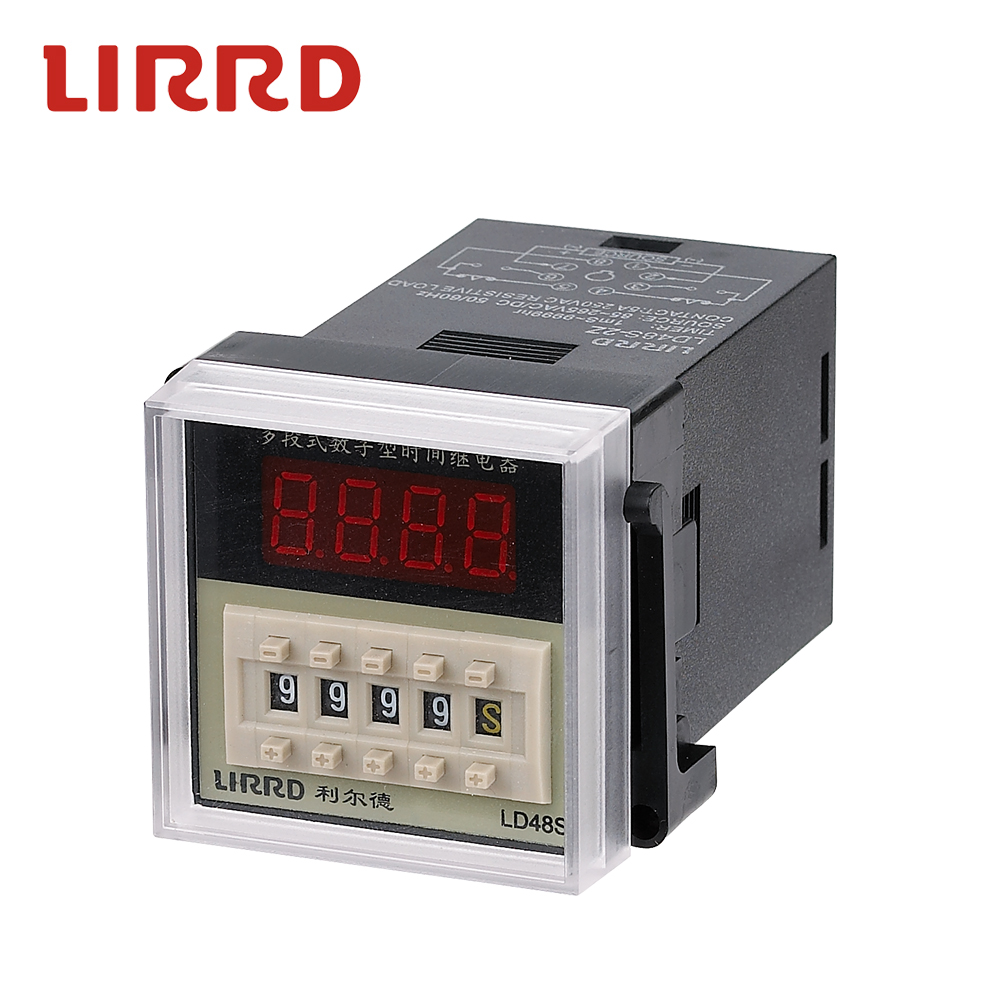

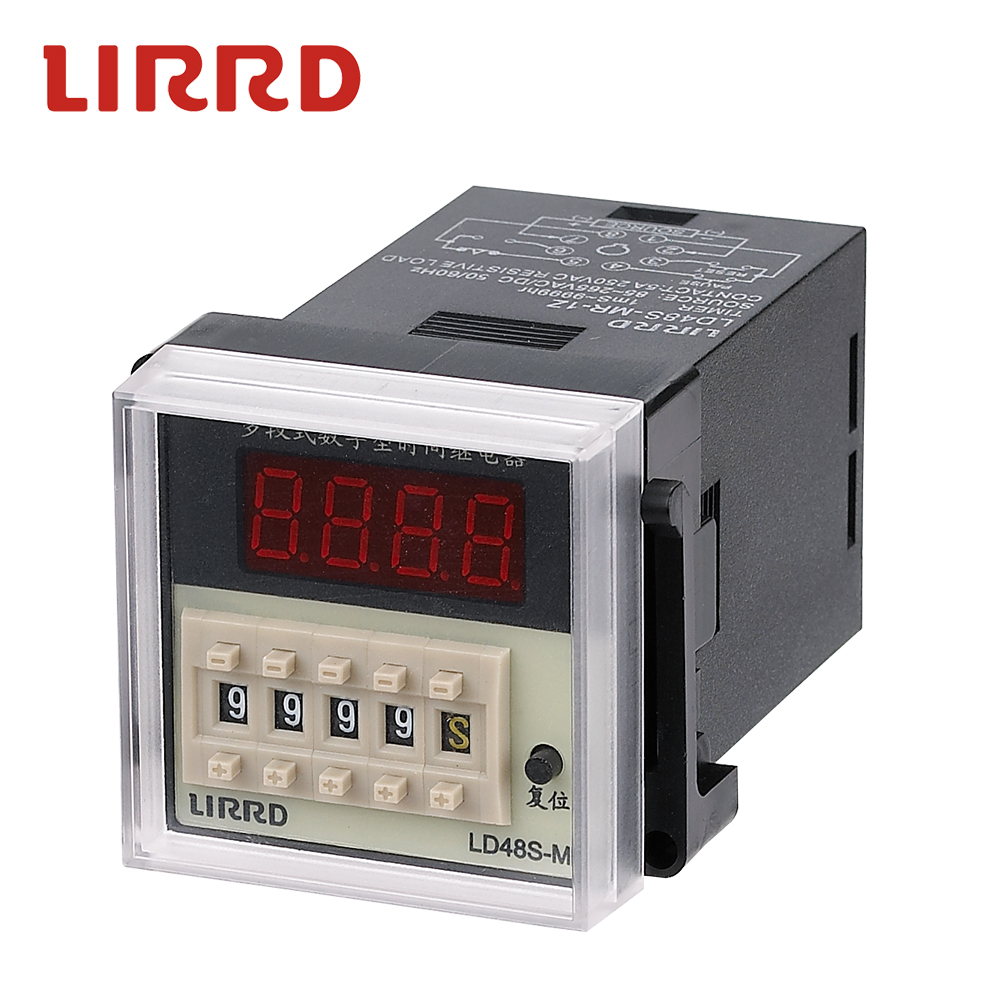

LD48S-3

Detailed description

Overview of main functions

(1) 4 bits dial code preset time ,with LED display of high bright ,digit height is 0.36 inch.
(2) 1 bit dial code set and delay multiplying factor ,multipying factors up to 8 varieties.
(3)  With high performance built-in microchip,taking high accvuracy crystal as clock source,the delay accuracy highly up to 0.05%.
(4)  lnpus signal adopts photoelectric coupling isolation to increase the anti-interference capability.
(5)  Wide applicable range for working power,85~265VAC/DC free input.
(6) DIN (48mm x 48mm) standard panel dimension,with standard 8-pin interface,and is converient to use with matchable base.
